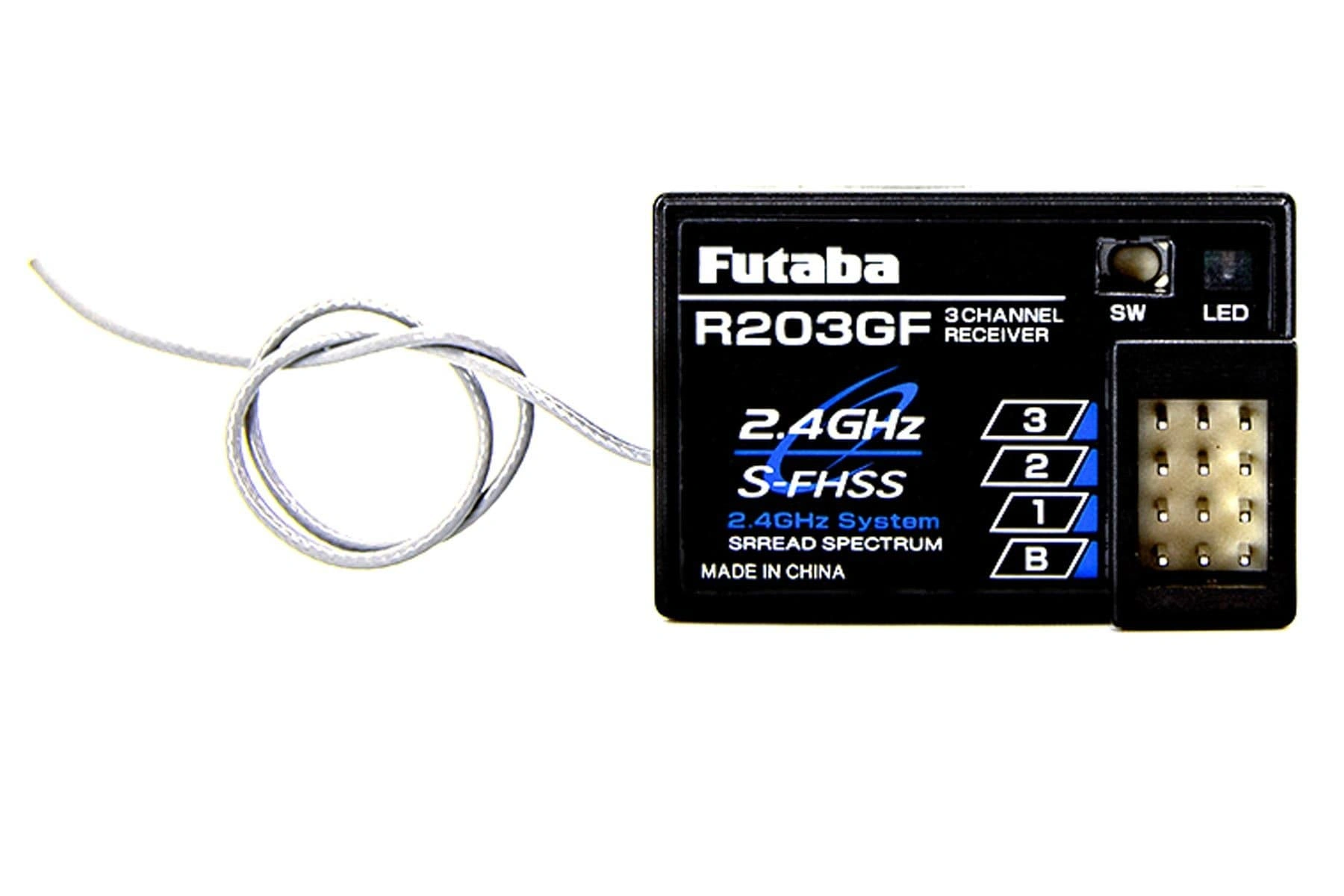

Futaba R203GF 3-Channel S-FHSS Receiver - FUT01102237-3

The Futaba R203GF 3-Channel S-FHSS Receiver is specifically for RC cars. Features are listed below.

Features:

• S-FHSS/FHSS auto detection
• Normal mode frame rate is (FHSS/S-FHSS) 13.63ms and accepts any type of servos or peripherals.
• High-Speed mode (in 4PL tx only), with an output of 6.8ms accepts digital servos including the BLS series and most peripheral equipment such as brushless ESCs
• One year limited warranty through Hobby Services beginning at date of purchase
• Dimensions: 1.54 x 1.02 x 0.39' (39 x 26 x 10mm)
• Weight: 0.28oz (8g)
• Operating Voltage: 4.8 - 7.4V (shared with servo)
• Battery Fail Safe Voltage: 3.8V*
• Current Drain: 30mA at no signal
• *Battery fail safe voltage is set for 4-cell NiCd/NiMH battery. Battery F/S does not work properly when other type of battery is used
• Antenna Length: 7-1/2'
