HS-7954SH: Ultra Torque Beast Servo - Steel Gears & High Voltage Power! Get Yours Now!
Alright, listen up, folks! Are you tired of the same old boring routine? Well, ditch the blah and embrace the BOOM with this absolutely, positively, gotta-have-it masterpiece! Seriously, it's like a party for your senses, a symphony of awesome, a… well, you get the idea. We're talking next-level cool here. This thing isn't just an item, it's an experience. A vibe. A statement. It whispers of adventure, hints at untold stories, and screams "You deserve this!" So, what are you waiting for? Grab yours before they're gone and prepare to become the envy of everyone you know! Trust me, you won’t regret it. This is the good stuff! Buy now!

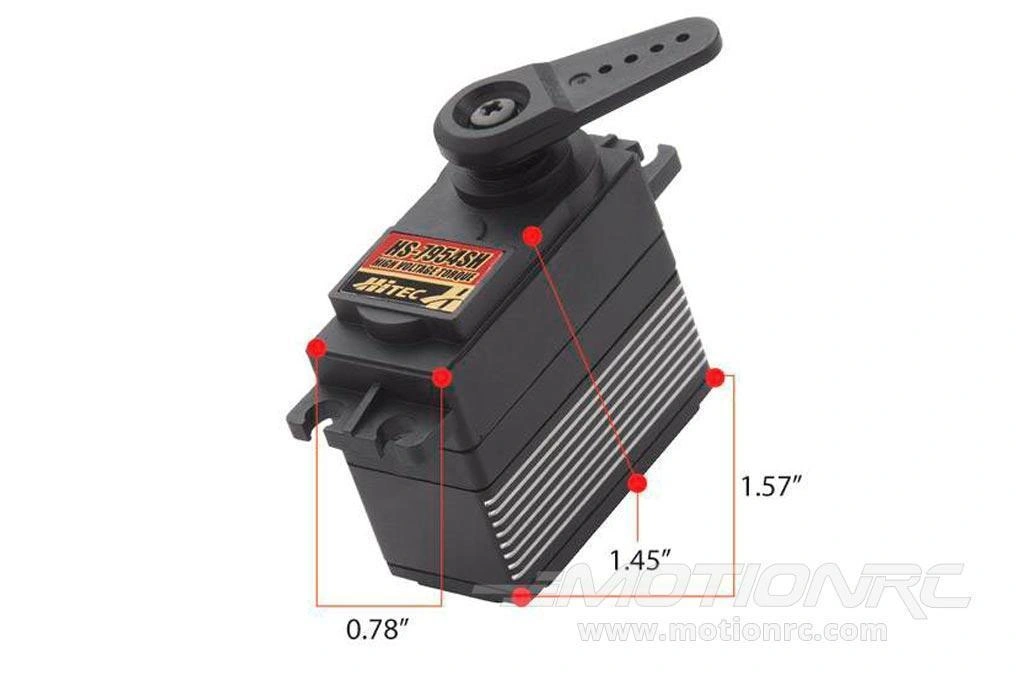

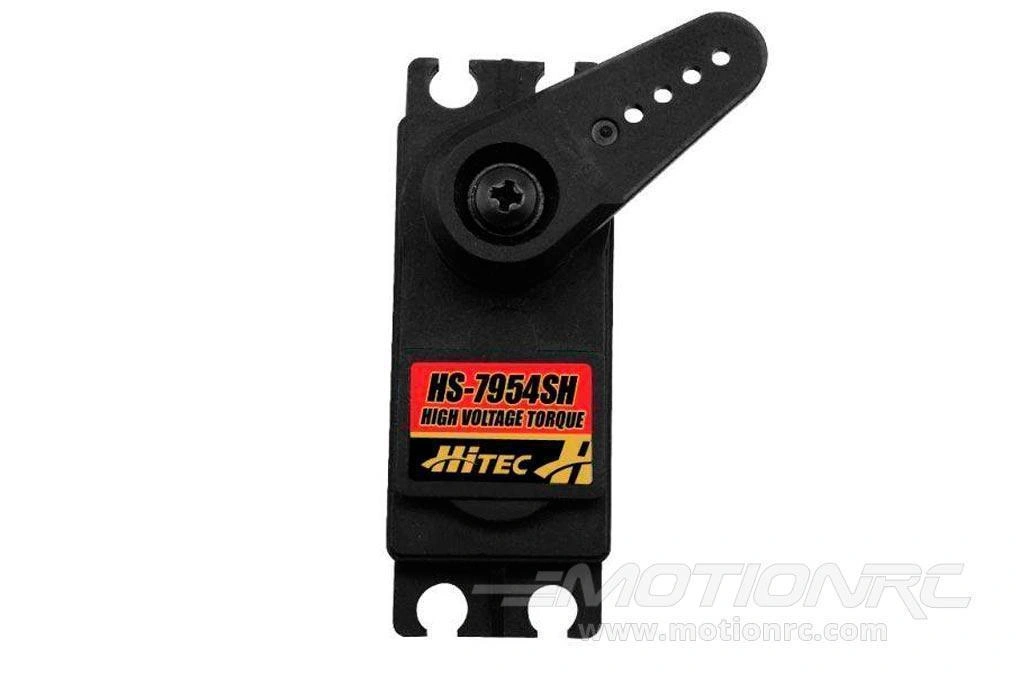

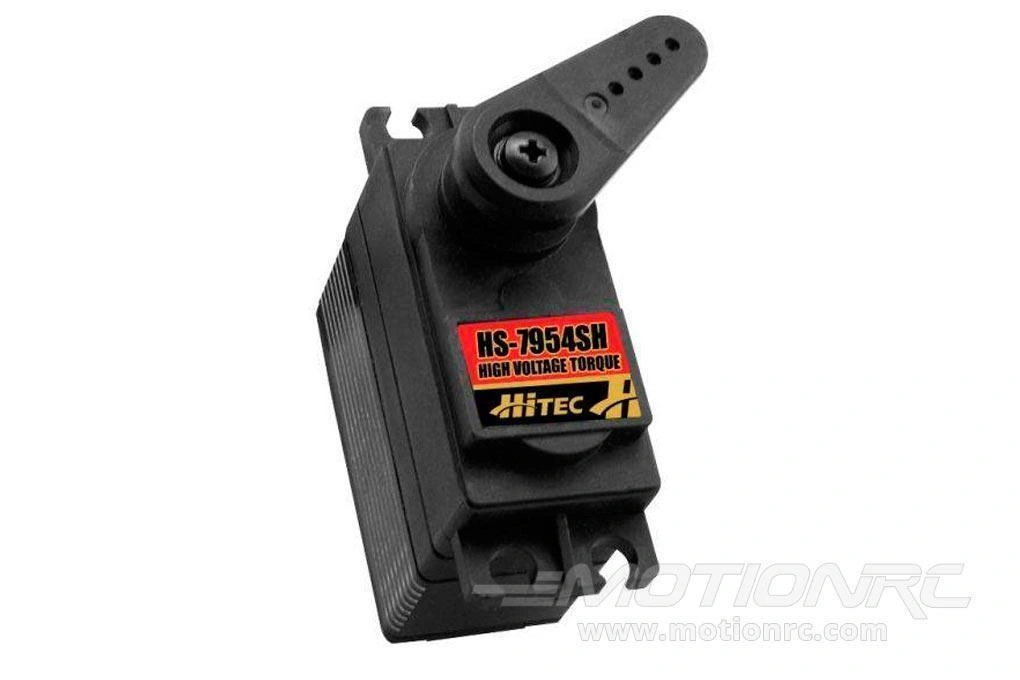

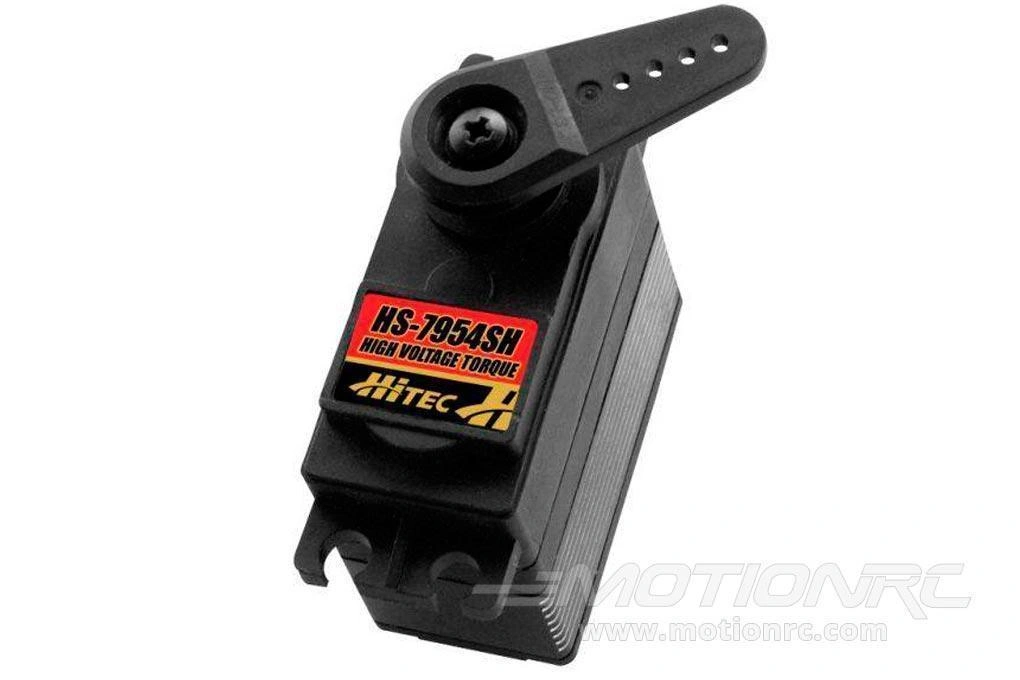

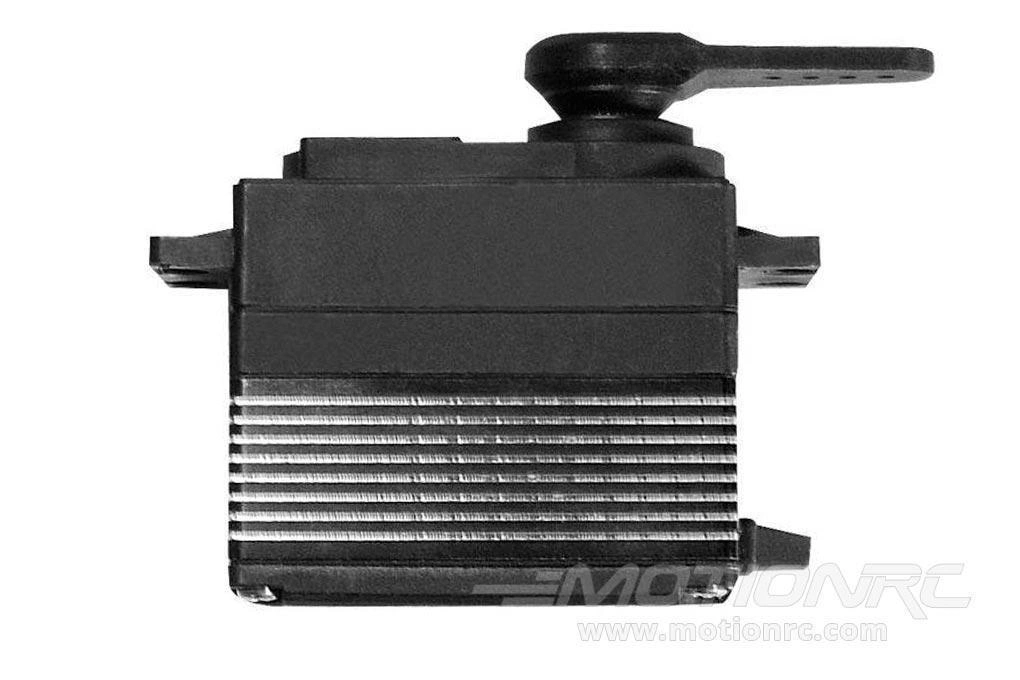

HS-7954SH High Voltage Ultra Torque Ball Bearing Steel Gear Digital Standard Servo from Hitec - HRC37954S
The HS-7954SH could be considered the most economical high voltage, high torque, coreless servo on the market. Based on the ultra popular HS-7955TG has the added benefit of a high voltage coreless motor. With 403 inch-ounces of torque at 7.4 volts, the HS-7954SH is fast too with a 0.12 second transit time when operating on a 2 cell LiPo pack. The HS-7954SH harnesses all this power is by utilizing a heavy duty case that incorporates an aluminum heat sink, hardened steel gears, two strong steel gear pins nested in brass axial bushings. Put it all together and you get one tough high voltage servo at a price that can't be beat.
What is a coreless motor?
A conventional servo motor has a steel core armature wrapped with wire that spins inside the magnets. In a coreless design, the armature uses a wire mesh that forms a cup that spins around the outside of the magnet. This arrangement is much lighter resulting in smoother operation and faster response time.
Features:
- Fully programmable digital technology
- Dual ball bearing supported output shaft
- Coreless motor for precise centering and accuracy
- G2 programmable digital circuit
- Steel gears for much longer life than conventional metal gears
- Nine O-rings for extra resistance to moisture and dust
- Capable of operating on two cell LiPo packs
Includes:
- 1x HS-7954SH high voltage ultra torque digital steel gear standard servo with universal connector
- 1x 1.8' (45mm) diameter round horn
- 1x 2.3' (59mm) long double sided horn
- 1x 2.8' (72mm) long double sided horn
- 1x 1.3' (34mm) single sided horn
- 1x 0.83' (21mm) single sided aluminum horn
- 1x 0.98' (25mm) single sided horn
- 4x each grommets, eyelets and mounting screws
- Instruction sheet
- Mounting hardware
Programmable features:
- Dead band width speed (reduction)
- Fail safe position direction (CW/CCW)
- Fail safe On/Off end points
- Overload protection resolution High/Low
